Documentation

# Briefing Forms Feature

todo

Well, congratulations – you decided to start with setting up a Briefing Forms Feature Content App! 🎉

We will start with a simple example – let us create a textarea HTML input field for our users to add some notes within our Content App.

<!doctype html>
<html class="no-js" lang="">

<head>
  <meta charset="utf-8">
  <title>My Content App</title>

  <script defer href="//code.assets.showcase-app.io/sdk/scp.briefing.js?latest"></script>
</head>

<body data-sc2-container>

<!-- We are starting here -->
</body>

As you can see, this was not that complicated, right?

It is just a plain HTML file which gets loaded by SCP whenever a user wants to edit content of a Material, based on the Material Type.

You probably did notice that we have a script HTML tag which is referring to the core Content App JavaScript SDK of SCP. This is required as we want to use the Briefing Forms Feature which depends heavily on said SDK.

WARNING

You do not need to import the Script manually if you use the legacy hosting feature of SCP (Briefings in Config Repositories).

The data-sc2-container attribute is the most important one as it marks the starting point where the SCP Briefing Form Feature then tries to find any data-sc2 field.

Readability

For better readability, the full default HTML boilerplate code will not be shown in all the following examples.

This also stays true for every following chapter if not explicitly stated otherwise.

# Our First Input Form Field

<body data-sc2-container>

<div data-sc2-editable="notes">
    What are your thoughts?
</div>

</body>

That's it – you have created your first textarea HTML input form field 🎉

It will now automatically be saved by SCP whenever a user changes the input, thanks to the data-sc2-editable="notes" tag attribute of the textarea HTML input form field.

It also reacts now to the state of the underlying Material and will be disabled when any saving or updating process is in progress or editing will not be allowed.

Neat!

# Custom Input Form Fields

Having said that, it even gets better:

You can also define any HTML non-input field to be a form input field HTML tag anyways.

<body data-sc2-container>

  <h1>My Briefing</h1>

  What do you like better?
  <select data-sc2-editable="fruits_or_veggies">
    <option value="fruits">Fruits</option>
    <option value="veggies">Veggetables</option>
  </select>

  What is your favorite?
  <img data-sc2-editable="favorite">

  Lets us know what you think
  <div data-sc2-editable="notes">
    What are your thoughts?
  </div>

</body>

With the Briefing Forms Feature enabled you can get the usability behind the data-sc2-editable tag attribute also on any non-input form field HTML tag and SCP will automatically create a WYSIWYG editor in it, powered by Froala Editor. You can also define what WYSIWYG options the user will have but this will be handled later, in the Advanced WYSIWYG chapter.

You can probably guess by now how to user the data-sc2-editable but we will do even more deep dives into this nonetheless.

# Extended Form Field Knowledge

<body data-sc2-container>

  <h1>My Briefing</h1>

  What do you like better?
  <select data-sc2-editable="fruits_or_veggies">
    <option value="fruits">Fruits</option>
    <option value="veggies">Veggetables</option>
  </select>

  What is your favorite?
  <img data-sc2-editable="favorite">

  Lets us know what you think
  <div data-sc2-editable="notes">
    What are your thoughts?
  </div>

</body>

The example shows that you can also use the data-sc2-editable tag attribute on a select HTML tag element.

# File Input Form Fields

Not only can you use the Briefing Forms Feature to manipulate and enhance the User Experience while working with your Content App, images can also be stored with SCP.

The user simply needs to pick a locally stored image which then will be uploaded into SCP automatically.

Let us now ask the user for images of their favorite fruits and have them upload them:

<body data-sc2-container>

  Please upload your top three fruit images:
  <input
    type="file"
    data-sc2-editable="favorite_fruits"
    data-sc2-max-files="3"
    accept="image/*">

</body>

With the snippet above, users will be allowed to upload three files of any image based MIME type.

MIME types

Please pay mind to which MIME types you allow as this can also end as being a security concern.

For further information about all the available/regular MIME types please take a look into the Mozilla MDN web docs (opens new window).

The detection of the real MIME type, done by the Browser here, can still be manipulated in the end but with this you at least did everything you could do without spending too much time on it.

# Checkbox And Radio Form Fields

Next we will have a look on checkbox and radio input form field HTML tag elements:

<body data-sc2-container>

  <h3>Food?</h3>
  <input type="radio" data-sc2-editable="favorite" value="pizza"> Pizza
  <input type="radio" data-sc2-editable="favorite" value="pasta"> Pasta
  <input type="radio" data-sc2-editable="favorite"  checked value="sushi"> Sushi

  <h3>Holidays?</h3>
  <input type="checkbox" data-sc2-editable="vacation" value="easter"> Easter
  <input type="checkbox" data-sc2-editable="vacation" value="christmas"> Christmas
  <input type="checkbox" data-sc2-editable="vacation" checked value="summer"> Summer

</body>

You might have noticed that we reuse the same data-sc2-editable key for all the items. Like with JavaScript Frameworks - like Vue.js or alpine.js - this is best practice if you want SCP to store only one of the given values related to the context.

`data-sc2-editable` Keys are unique

Please ensure that you do not use the same data-sc2-editable keys for different kinds of HTML tag elements. Doing so will break the Briefing Form as SCP tries to create any WYSIWYG editor instance as well as that any I/O operation will be based on the unique key of the data-sc2-editable field.

# Advanced WYSIWYG

For HTML Fields, which are rendered as WYSIWYG editors, SCP offers a few options you should note:

data-sc2-single-line

By default, an SCP rendered WYSIWYG editor input field is multiline-enabled, so that the user can add multiple paragraphs within the editor.

This is an unintended feature when it comes to headlines or something similar, where you can disable this behavior by adding the data-sc2-single-line tag attribute to the HTML tag element.

data-sc2-toolbar-buttons

With Froala Editor inside SCP, when you want to enable or disable certain toolbar buttons for some (input form) HTML tag elements it can be done by the following tag attribute:

data-sc2-toolbar-buttons="-bold,+italic,-superscript"

You can think of it as a mathematical equation – we did remove the bold and superscript options by prepending a - to it and added the italic option by adding a + to it.

Briefing Forms

The Briefing Forms Feature is disabled by default and will be enabled when the Material allows content editing. When SCP enables or disables the Forms (due to e.g. saving after an update in any of the fields has happened) this is reflected on every editable input field and button that initializes External Services.

# Custom Toolbar Buttons

todo (Vedran)

# Extended Form Field Knowledge

<body data-sc2-container>

  <h1>My Briefing</h1>

  What do you like better?
  <select data-sc2-editable="fruits_or_veggies">
    <option value="fruits">Fruits</option>
    <option value="veggies">Veggetables</option>
  </select>

  What is your favorite?
  <img data-sc2-editable="favorite">

  Lets us know what you think
  <div data-sc2-editable="notes">
    What are your thoughts?
  </div>

</body>

The example shows that you can also use the data-sc2-editable tag attribute on a select HTML tag element.

# Content App Power Users

Inside your Content App you can check if the current user is a Power User and for example hide/show options based on his state. This will usually help to keep the Content App simple to use for the majority of users while Content App Power Users might have access to more advanced and complex features.

To easily work with this, there is a data-helper which will conditionally show/hide elements based on the status of the user:

<body data-sc2-container>

  <div data-scp-hide-for-power-users>
    I will be hidden for power users but visible for normal users.
  </div>

  <div data-scp-hide-for-normal-users>
    I will be hidden for normal users but visible for power users.
  </div>

</body>

Don't forget the permission

The permission usesContentAppPowerFeatures needs to be granted to a user to designate him to be a Power User. All other users will be treated as normal users.

You can also use this inside your scripts by using the window.showcase.user.isPowerUser getter.

# User Permissions In Detail

You can also work with the general permission data-helper if the power user status does not fulfill your needs already. It allows you to hide or show elements based on a specific permission:

<body data-sc2-container>

  <div data-scp-required-permissions="copyMaterials">
    You can copy me... Really – you are allowed to!
  </div>

  <div data-scp-required-permissions="changeStatus,editBriefing">
    You can edit me, but you might need to change the status first :)
  </div>

</body>

Javascript Way

You can easily access the permission helper by referring to the active user with window.showcase.user.hasPermission('singlePermission') or window.showcase.user.hasPermissions('listOf,permissions').

# CSS Classes

The Briefing Form Feature adds CSS classes to your body to let you control visibility and style within a given state of the Material, which also happens based on it's Meta Data:

CSS Class State
sc2-ready Is attached when the briefing form was initialized properly
sc2-editable Is attached when the briefing form can be edited by users
sc2-rendition Will be attached once SCP is generating a rendition (image or pdf) of the briefing form
sc2-rendition-png Will be attached when creating a PNG from the briefing form
sc2-rendition-pdf Will be attached when SCP creates a PDF out of the briefing form

Removing Elements for PDFs or images

If you want to remove markup completely when SCP creates a Rendition from the Briefing Form, you can add data-sc2-remove as an attribute tag to any HTML tag element you want see removed for it.

# Scripting

For more sophisticated use cases within Briefing Forms it is required to leverage JavaScript and consume some Browser Events SCP fires within your Content App.

Let us have a look at an example for this:

<body data-sc2-container>

  What do you like better?
  <select data-sc2-editable="fruits_or_veggies">
    <option value="-" selected>-</option>
    <option value="fruits">Fruits</option>
    <option value="veggies">Veggetables</option>
  </select>

  <div class="your-choice">

  </div>

  <script>
    document.addEventListener('sc2.editor.fruits_or_veggies.updated', function () {
      document.querySelector('.your-choice').innerHTML = briefing.getContent('fruits_or_veggies')
    })
  </script>

</body>

As you can see, we are registering an event listener for sc2.editor.fruits_or_veggies.updated which will be emitted when the user (or SCP internally) changes the value of the data-sc2-editable="fruits_or_veggies" tag attribute defined HTML tag element.

# Browser Events

There are several predefined Browser Events (JavaScript Events) implemented and for the remainder of this part of the documentation, we'll discuss each event available.

Quick Links:

# Browser Event Listing

# SC2 namespace

# sc2.briefing.initialized

Is dispatched when the Briefing Forms' JavaScript has been loaded. Use this Browser Event if you want to execute some initialization logic. You can not rely on editor data before this Browser Event has been fired.

# sc2.editor.updated

You will get notified on every editor update – no matter if SCP or the user did change something. You will receive the given object:

const listener = (data) => {
  console.log('Editor Key', data.key)
  console.log('Editor Content', data.content)
}

# sc2.editor.{editor-name}.updated

This Browser Event works like the sc2.editor.updated one but (by default) just for a specific Froala Editor field. It uses the name of the editor which you've defined via the data-sc2-editable= property. This is also what you can define as a defaults field within the App Configuration.

# sc2.briefing.material.updated

Whenever an update happens within the Briefing Forms inside the Property panel this event will be fired. This can be triggered due to changes made by the user or the system.

# sc2.briefing.disabled

Is fired when the briefing gets disabled which means that SCP has decided to deactivate all content editing feature due to your business rules like material options.

# sc2.briefing.enabled

As the sc2.briefing.disabled event, this one notifies you that the content can be changed now.

# sc2.briefing.app_configuration.updated

The briefing gets notified when the App Configurations got updated and will act accordingly to this

# sc2.briefing.app_configuration.{type}.updated

Like with the sc2.briefing.app_configuration.updated event with this you just get informed for one specific App Configuration type.

# SCP namespace

# scp.app.init

When the Content App is being loaded for Renditions this command will be utilized for sending over the initial settings' payload via postMessage into the iframe.

# scp.app.configuration.updated

It is similar to the sc2.briefing.app_configuration.updated event, but just as an indicator when the configuration of the Content App itself was updated. This will eventually also trigger that event and sc2.briefing.app_configuration.{type}.updated, though.

# scp.briefing.services.initialized

This event will be triggered on initialization success of an External Service, like the ADAM Picker or the Material Picker.

# scp.host.resizeFrame

This event will be triggered on re-initialization for iframes inside the Briefing Forms Feature, like when switching from Edit to Preview mode.

# App Configurations

Presets Utilization

SCPs Briefing Forms Feature can consume App Configurations and allow you to globally (or on a more granular level) control values for your Default, Static, and Configuration definitions inside your Briefing.

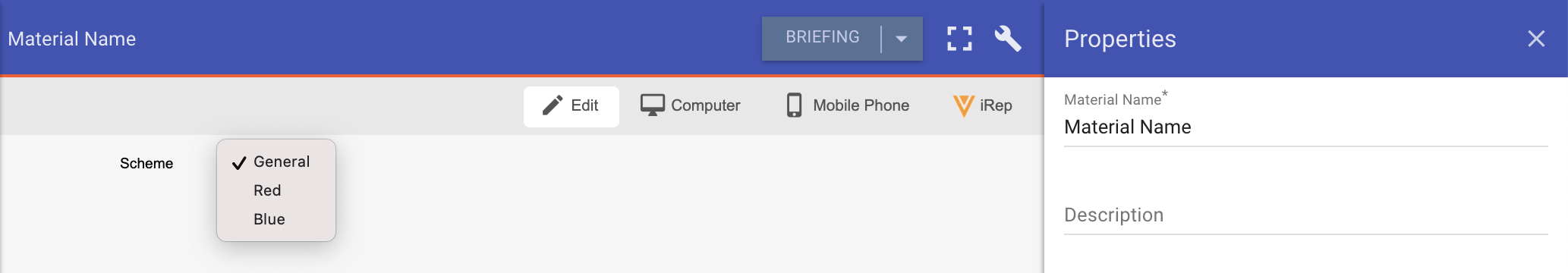

In the image above you can see an example for that you can for example also configure all your available Brand Schemes.

For a deep dive into this matter please read the full disclosure under Configuring Content Apps.

Content Apps

As data management is under full control of your Content Apps you also have access to all your Configurations which you will benefit from greatly in your Briefing - but its utilization is different.

If in question, refer to the full Content Apps documentation or – if you are about to create your own custom one – jumpstart to the Custom Content Apps guide.

Read more about setting up App Configurations

# Presets

Presets Utilization

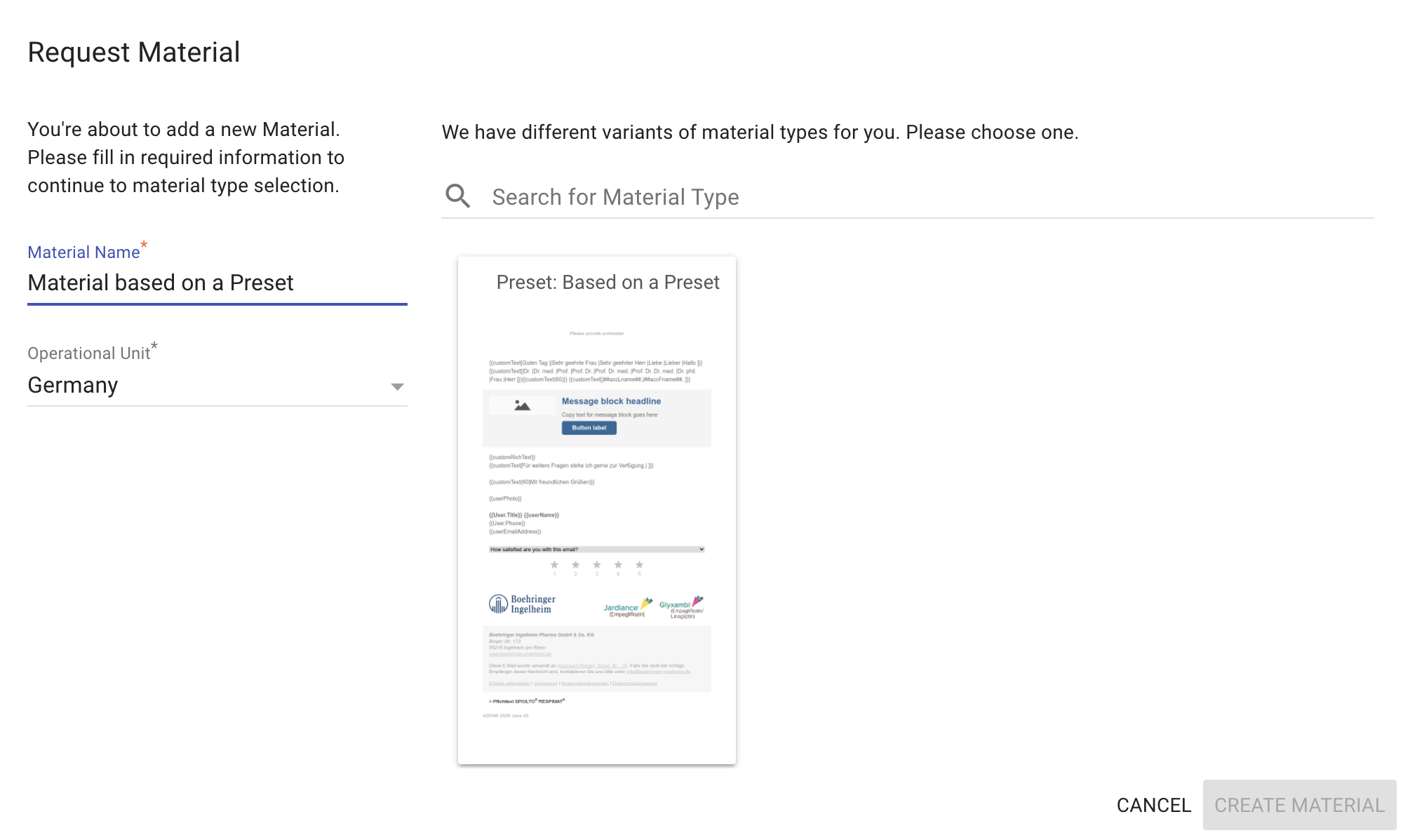

Within SCP you can also convert a Material into a Preset.

If you have worked with SCP (e.g. as a customer) from the beginning, you will definitely have cherished this back when it was introduced to everyone.

Presets can be created and managed by everyone who has the right Permissions. It can be then be used to be just another alternative of the Material Type it is based on, that you can then use as a basis of where you want to start from, without the hazzle of having to create a completely new Material Type all along - as long as doing this fits your needs.

You can define which Materials are valid to be transformed into a Preset by what you define in your SC Managers' area for them.

So, if you want to set up your Content App for Presets head right over to the References.

Read more about setting up Presets
